Distillation Capacity:
Produces 25 L/h of distilled water.
Storage Tank:
Integrated with an 50-liter storage tank.
Purity:
High-purity distilled water with conductivity of approximately 2.5 μS/cm at 25 °C.
Water Quality:
Pyrogen-free, low-gas, and bacteria-free water.
Protection:
Automatic thermostatic low-water cut-off to protect the heating element in case of low water.
Operation:
Automatic water switching for continuous functionality.
Energy Efficiency:
Energy and water-saving through an automatic distillation process.
Display:
Screen indicating water level in the storage tank, heater operation status, water supply, error status check, and user instructions.
Maintenance:
Easily accessed evaporator tank for effortless cleaning and maintenance.
Material:
All water contact materials are made of stainless steel (material no.: EN 1.4301).
Heating Element:
Made of stainless steel (material no.: EN 1.4301).
Housing:
Galvanized steel with electrostatic powder coating.
Installation:
Suitable for both bench and wall mounting.
Accessories:
All parts and accessories for installation included.

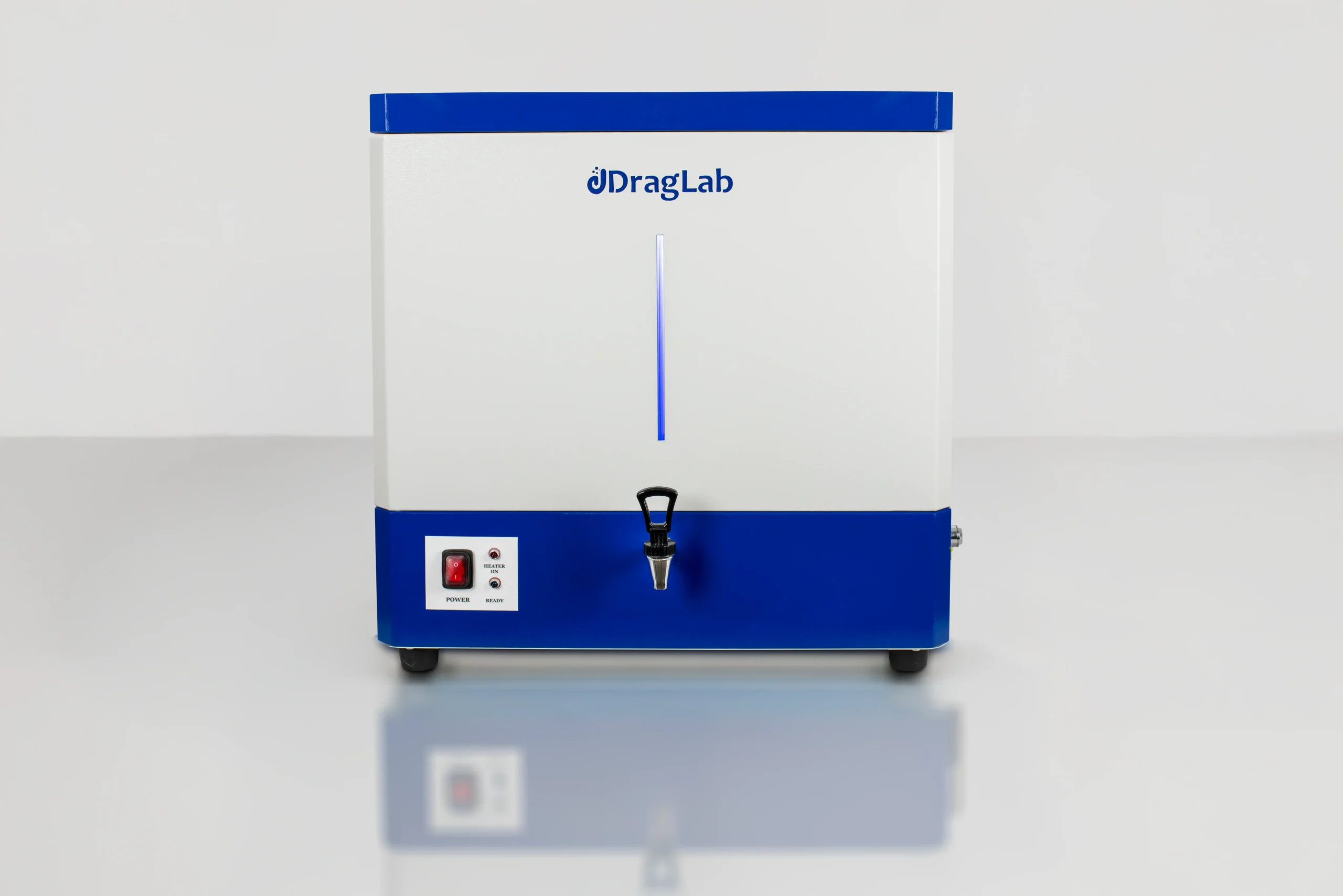

Water Still DS 8025
Professional, fully automatic water distiller with a production capacity of 25 liters per hour and an integrated 50-liter storage tank. Constructed from high-quality stainless steel, this distiller is designed to produce highpurity distillate autonomously, eliminating the need for continuous personnel supervision.
| Weight | 87 kg |
|---|---|
| Dimensions | 77 × 123 × 87 cm |
| Production Capacity | 25 litter / hour |
| Storage Tank | Integrated 50 Litter storage tank |
| Consumption | 250 litter / hour |
| Conductivity | Approximately 2,5 µS/cm at 25 ºC |
| Fully Automatic | Automatic thermostatic power cut-off to protect the heating element in case of low water. |
| Water supply | Built-in solenoid valve connection for the evaporator and cooler, with automatic switching on/off based on the water level in the evaporator tank. |
| Internal material | The tanks (Evaporating tank & Storage tank) are made of stainless steel (material no. EN 1.4301) |
| External material | The housing is made from galvanized steel and coated with electrostatic powder. |
| Degassing system | The unit includes a top vent for effective degassing, ensuring pyrogen-free, low -gas, and bacteria-free water. |
| Accessing interior | The evaporator and storage tanks are easily accessible for cleaning and maintenance, facilitating efficient cleaning procedures. |
| Installation | All necessary parts and accessories for installation are included. |
| Distillate water withdrawal | Distillate water can be withdrawn by continuously or push mode from front tap. |
| Main switch | The main power switch button located on the front of the unit |
| water level | The device features a tube indicating water level in the storage tank. |
| Degassing | pyrogen-free, low-gas, and bacteria-free water. |
| Power connection | Power cable with 5 pins three-phase CEE plug. |
| Water inlet | The cooling water inlet is located on the right-hand side of the unit, with a diameter of 3/4 inch (Ø 19.05 mm). |
| Water pressure range | From 2 bars to 10 bars |
| Water outlet | The cooling water outlet is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10 mm). |
| Drainage tap | The drainage tap is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10 mm). |
| Distillate water | Distillate water can be withdrawn by continuously or push mode from front tap. |
| Power | The main connection cable on the left-hand side of the unit |
| Voltage | 380 volts, 50/60Hz |
| Watt | 18000 watts |
| Gross weight carton | 98 Kg |
