| Weight | 300 kg |
|---|---|
| Dimensions | 112,5 × 180 × 118 cm |
| Detecting method | Electromagnetic induction |
| Detecting ability | Stainless φ2.5, Steel ball φ1.0 |
| Detecting area / Passing width | 750mm |
| Passing height | 230mm standard (with guide: passing height220mm) |
| Belt speed | 25m/min. (50Hz), 30m/min (60HZ) |
| Power source | AC100～240V 50/60Hz about 300VA |
| Dimensions | 1125(D)×1180±50(H)×1800(W) |
| Pass line | 800±50mm |
| Option | Bell mouth guide, Emergency stop switch, Foot switch, Remote switch |
| note | Single Head |

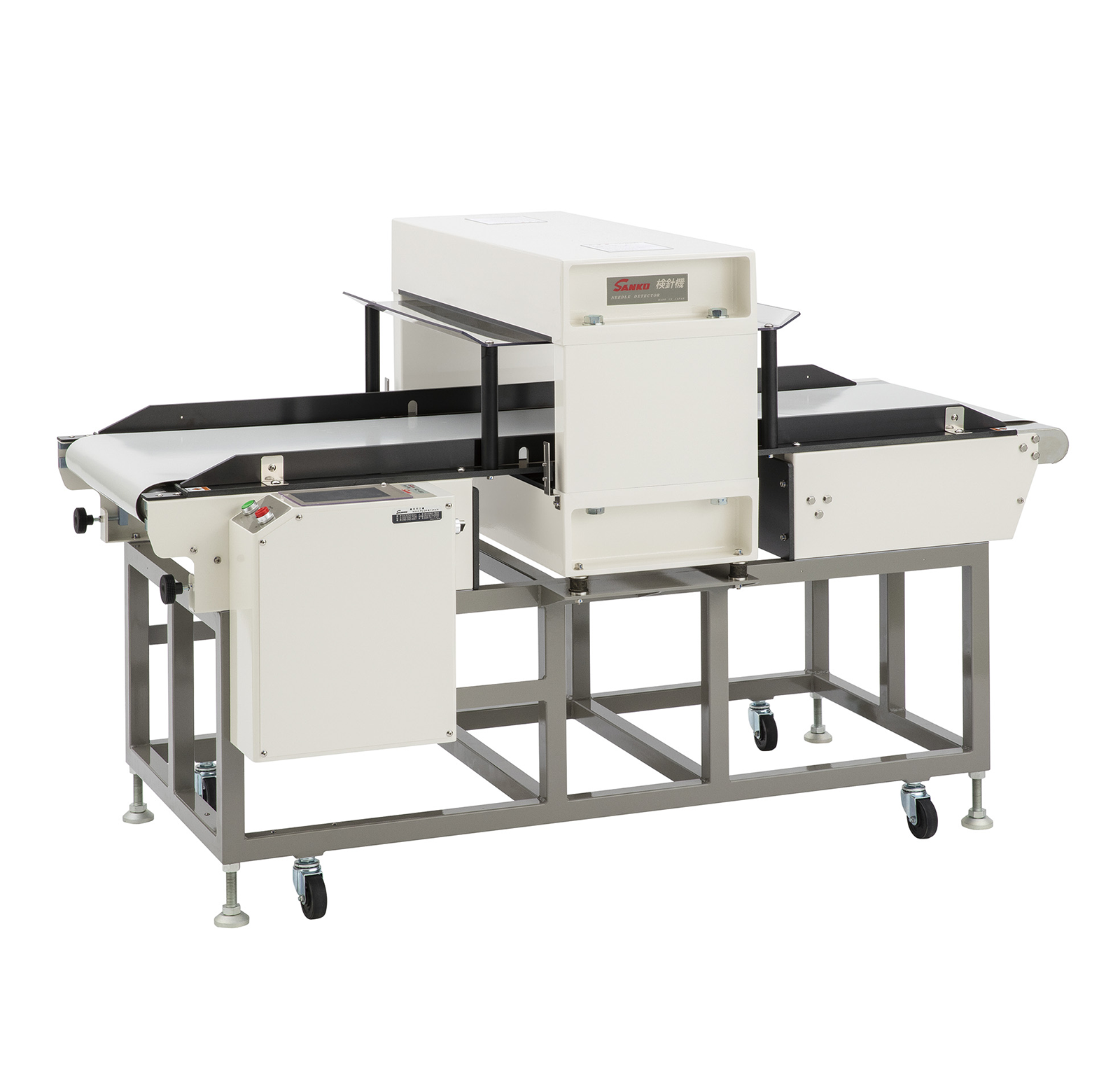

SC1-750
SPECIAL FEATURES
- Pleasant easy to operate with large display.
- Capable of strong 100k pcs of records of inspection /tests,and of autputting data to USB.
- Control with counter function of checking,detecting and passing.
- Safe inspection with lock-function of checking,detecting and passing.
- Capable of displaying/printing out history data on the PC with the dedicated software.
APPLICATIONS
Sewing Products like knitwear,fabric,blankets.
Clothing products like shoulder pat,hat,towel,stuffy animals.
