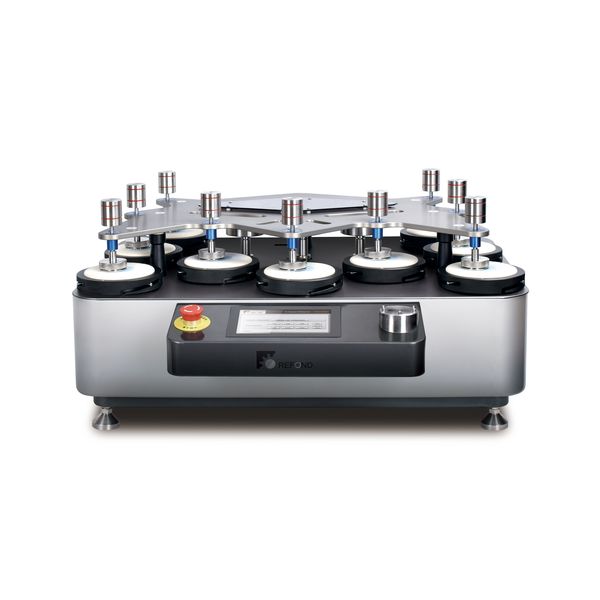

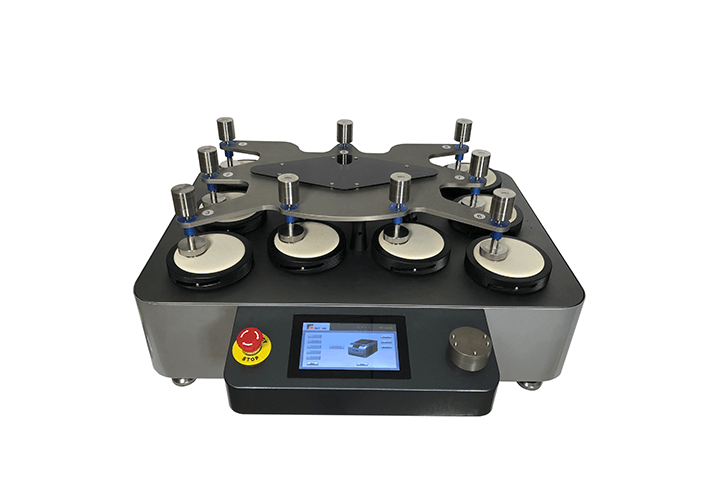

Martindale Abrasion & Pilling Tester Model：RF3169N
Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile fabrics. Samples are rubbed against reference abradant under a specified pressure and continuously rotating for Lissajous figures.
Test Scope：
For the determination of the characteristic of abrasion and pilling of textile fabrics, artificial leather, synthetic leather or film materials.
Standards：
- ASTM D4966, ASTM D4970, BS 3424-24
- ISO 12945-2, ISO 12947, JIS L1096
- GB/T 4802.2, GB/T 13775, GB/T 21196-2
- EN 530, FZ/T 20020, M&S P17, M&S P19
- M&S P19C, NEXT TM18, NEXT TM18a, NEXT TM18b
| Weight | 112 kg |
|---|---|
| Dimensions | 75 × 64 × 36 cm |
| Operation | 7”Touchscreen Operation, easy to use. |
| Working Positions | 9 positions (or 3 positions for option) |
| Abrasion Stoke Length | 24±0.5mm,60.5±0.5mm. |
| Load Weight | 9kPa、12kPa adding weights. |
| The rotational frequency of the drive unit | outer driving unit,47.5±2.5rpm，Inner driving unit, 44.5±2.4rpm. |
| Pressing Weight | 2.5±0.5kg. |
| Pressing Weight Diameter | 120±10mm. |
| Power | AC230V 50Hz / 60Hz. |
