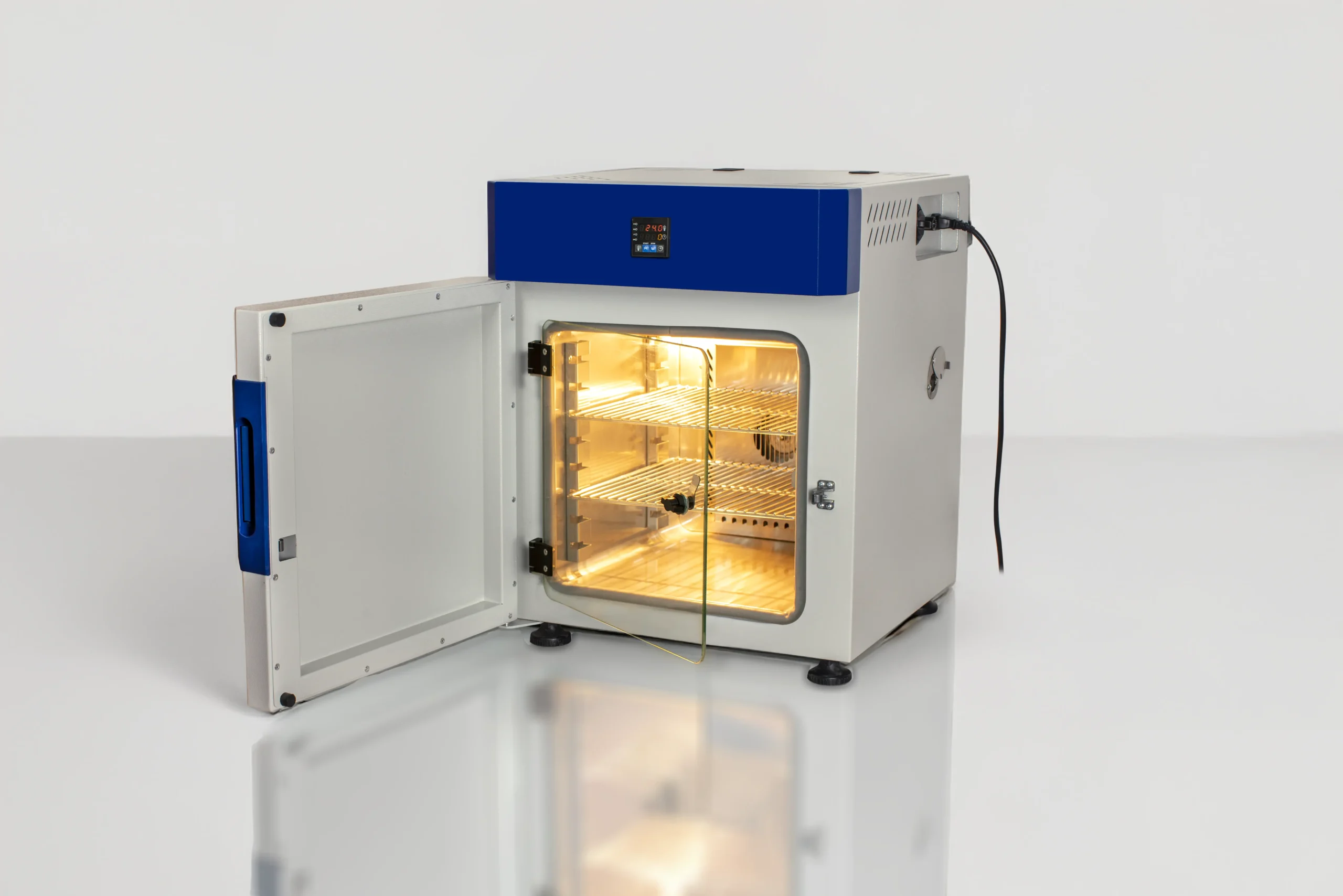

Drying oven DO 30 – Digital Display – Precision Laboratory Drying Oven

Drying oven DO 30 - Digital Display – Precision Laboratory Drying Oven

DragLab Drying Ovens are the most effective and reliable devices for precise drying, sterilization, and thermal testing, requiring only a power source for operation. This process involves circulating heated air within a controlled chamber to remove moisture from samples, ensuring uniform drying and temperature stability. The forced or natural convection system distributes heat evenly, allowing for consistent and reproducible results across various applications. The insulated chamber minimizes heat loss, enhancing efficiency while maintaining a stable working environment. DragLab drying ovens require minimal maintenance, needing only regular cleaning. Proper airflow and temperature settings should be adjusted to achieve optimal drying performance.

Drying oven DO 30 – Digital Display

DRAGLAB innovative drying ovens used in research and industries and medicine for a variety of applications, combine efficiency and performance with exceptionally high levels of precision and short heating-up time features on the list of benefits offered.

SKU: 3031.300 Categories: , Brand:

Application

  • Scientific and research laboratories
  • Industry and quality assurance applications
  • High-accuracy temperature processes, including homogeneous heat distribution and residue-free drying
  • Contamination-free processing, sterilization, and safety-compliant applications
  • Reliable and precise laboratory experiments with consistent test conditions
  • Versatile laboratory tasks, including media preparation and material testing
  • Program-controlled heating for industrial, scientific, and research applications
  • Drying oven DO 30 – Digital Display

Features:

Ventilation System:
Airflow with forced air circulation by a fan.
Capacity:
30 litter useful chamber volume.
Display:
7 segment digital display.
Control:
Programmable PID microprocessor.
Temperature:
Temperature control ranges from +20 °C to 250 °C.
Timer:
Timer control ranges from 1 minute to 99:59 hour or continues.
Internal shelves:
Two standard shelves.
Interior chamber:
Functional stainless steel AISI 304.
Housing:
Electrostatic powder-coated galvanized steel.
Protection:
Automatic thermostatic protection.
Temperature homogeneity:
In accordance with DIN 12880.
Safety:
European directive 2014/35/EU and 2014/30/EU.
Warranty:
2 years warranty worldwide.



Working temperature range

min. +20°C ambient up to +250°C
Temperature fluctuation

0.1°C
Temperature accuracy

± 0.3 % (Over full scale)
Temperature unit

Easy to choose Celsius or Fahrenheit
Temperature sensor

1 Pt100 sensor DIN class A in 2-wire-circuit
Language setting

English
Control

Adaptive multifunctional digital PID-microprocessor controller
Display

4 digits, 7 segments digital display
Timer

Digital backward counter to target time setting
Timer control

Adjustable from 1 minute to 99:59 hour or continues
Delay timer

Programmable time delay function
Function set point wait

The timer does not start until the set temperature reached the set point
Adjustable parameter

Temperature and time, automatic fan adjustable
Door

Fully insulated stainless steel door with door lock
Calibration certificate

Calibration certificate at +100°C (optional)
Interior

Easy-to-clean interior made of stainless steel AISI 304 on all sides
Gasket

Synthetic rubbers gasket
Housing

Electrostatic powder-coated galvanized steel
Insulation

Fully isolated chamber by Rockwool covered by an aluminum sheet to
ensure high-temperature stability
Emergency knob

Manual knob in case of emergency
External dimensions

470 (W) X 525 (D) X 600 (H) mm
Shelves

2-shelves chrome plated
Auto diagnostic system

Audible alarm for fault analysis
Alarm

Audible, can be switched off, adjustable limit on the independent
temperature safety device
Standards

integrated independent temperature safety device with visual alarm
accordance DIN 12880
EN 61010-1 and EN 61010-2-010 in accordance with EU directive 2014/35/EU
EN 61326-1:213 and EN 61326-1 in accordance with EU directive 2014/30/EU
Class

Class I electrical equipment in accordance with EU Directive 2014/35/EU
Protection Class

IP20 according to EN 60529
Internal dimensions

320 (W) X 310 (D) X 320 (H) mm
Chamber

Easy to clean Stainless steel material no.: EN 1.4301 (AISI 304)
Useful volume

30 litter
Standard shelves

2-shelves chrome plated
Max. number of shelves

5
Permitted load

75 Kg
Load per shelve

15 Kg
Fan

Forced air circulation by quiet air turbine automatically adjustable
Installation

The distance between the wall and the rear of the appliance must be at
least 15 cm.
The sides distance must be not less than 5 cm.
The distance from the ceiling must not be less than 20 cm
Temperature

+5 °C to +55 °C
Humidity

Max. 80% rh
Voltage

230 volts, 50/60Hz
Watt

1500 watt
Dimensions approx. incl.

630 (W) X 570 (D) X 800 (H) mm
Net weight

35Kg
Gross weight carton

45Kg
45Kg

Drying oven 30 Lt – Digital display – AMBIENT TEMPERATURE:
+20 ºC to 250 ºC – 230V, 50/60Hz
Description

Drying oven 30 Lt – Digital display – AMBIENT TEMPERATURE:
+20 ºC to 250 ºC – 230V, 50/60Hz
