| Weight | 390 kg |
|---|---|
| Dimensions | 280 × 105,5 × 107,5 cm |
| Detecting method | Magnetic induction |
| Detecting ability | Steel ball φ0.8(height 100mm), φ1.0(height 140mm), φ1.2(height 170mm) |
| Detecting area / Passing width | 600mm |
| Passing height | 120mm (with guide: passing height 110mm), 140mm (with guide: passing height 130mm), 170mm (with guide: passing height 160mm) |
| Alarm device | belt stop (with backward run function), Buzzer, Lamp |
| Belt speed | 39m/min. (50/60HZ) |
| Power source | AC100～240V 50/60Hz about 300VA |

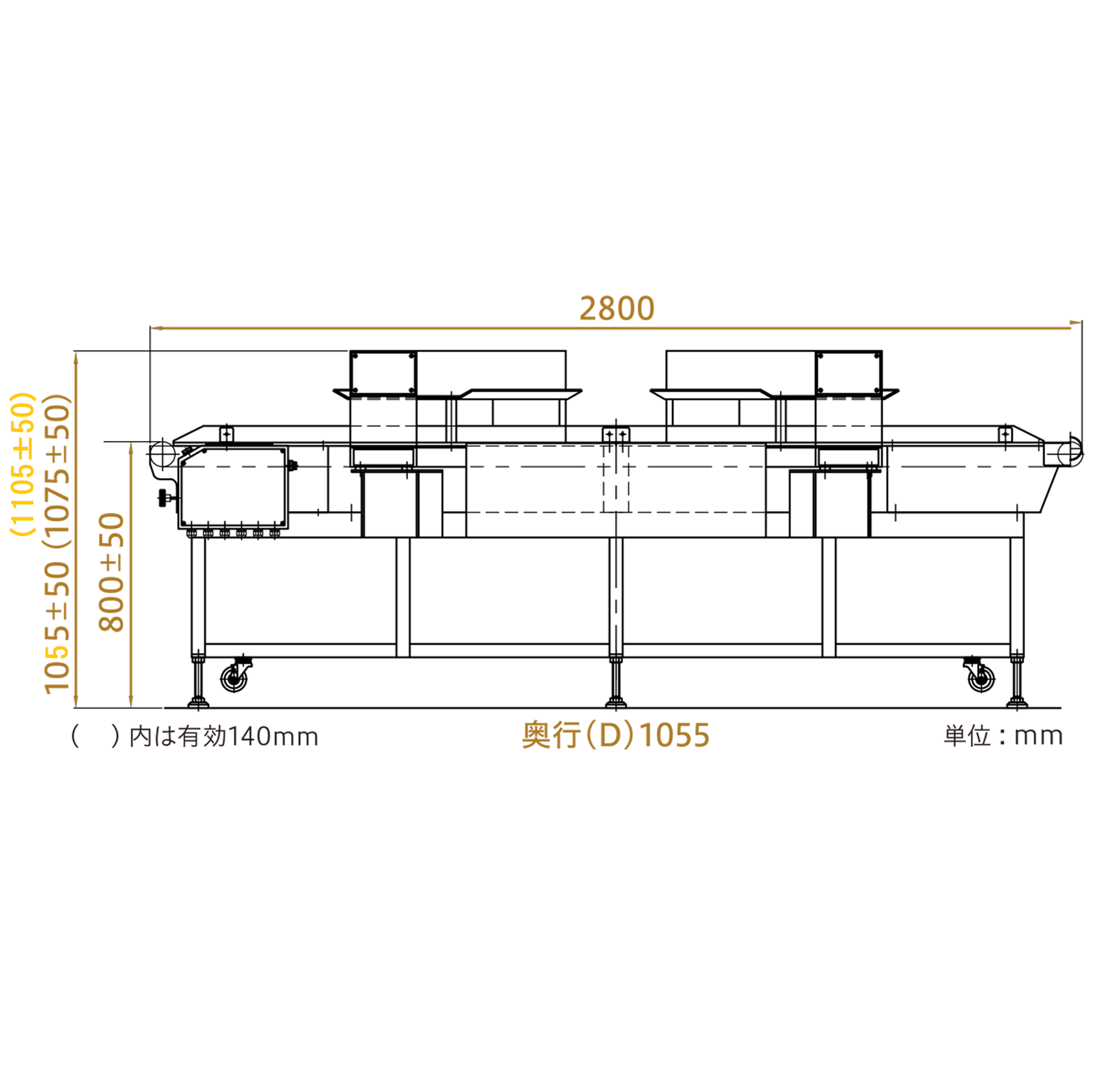

| Dimensions | 1055(D)×1055±50(H)×2800(W) ・・・detecting height 120mm, 1055(D)×1075±50(H)×2800(W) ・・・detecting geight 140mm, 1055(D)×1105±50(H)×2800(W) ・・・detecting geight 170mm |
| Pass line | 800±50mm |
| Option | Emergency stop switch, Foot switch, Remote switch |

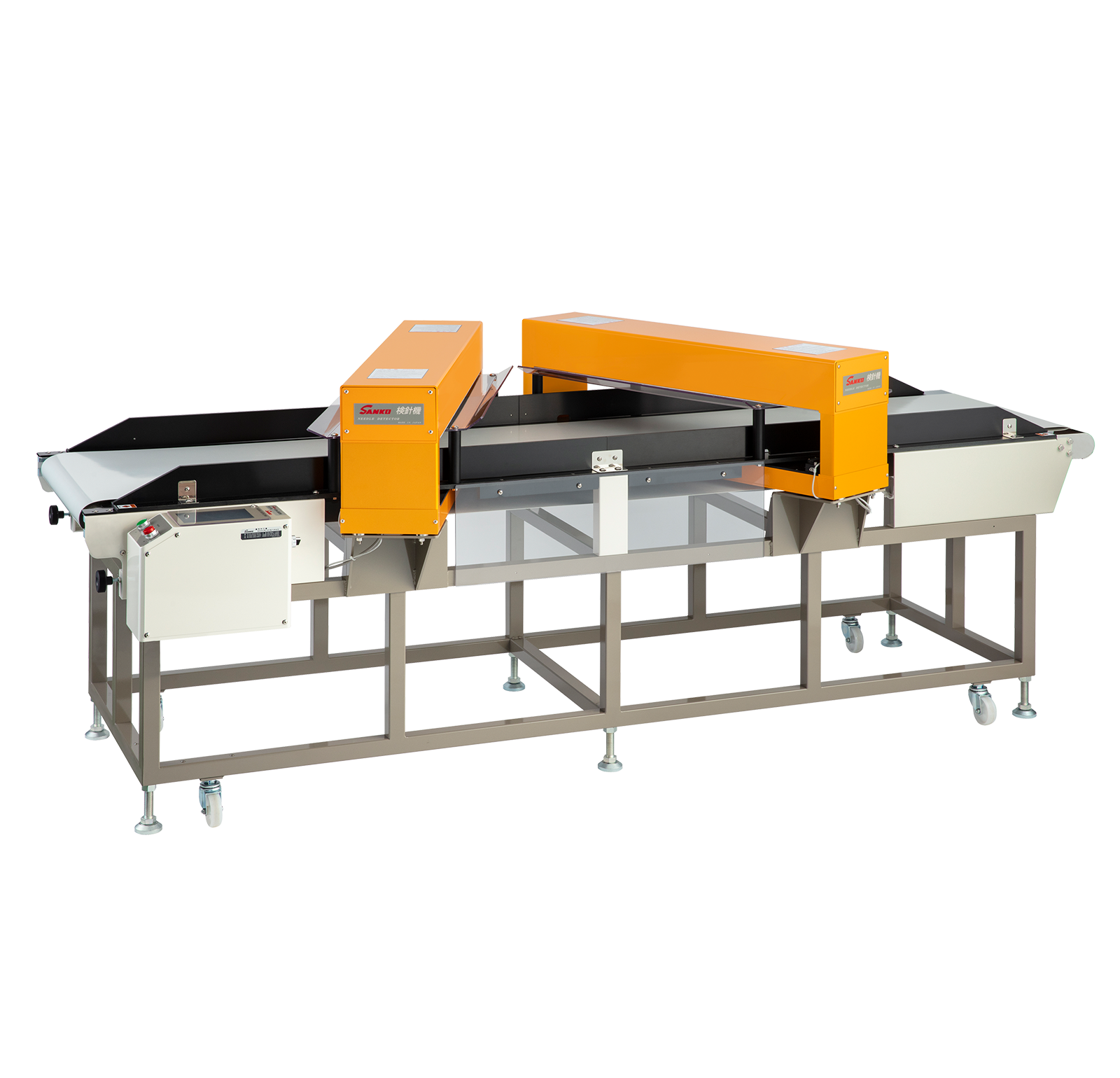

APA-6900W
SPECIAL FEATURES
- With the new method of a detecting unit cutting external noises, inspections can be performed without worrying about surronding
environments. - A belt speed with a 39m/Min. enables iron detection work more efficiently (50/60Hz).
- By placing the detecting parts in a reversal-V-shape,differences of sensitivities depending on orientations(disordering directions)of needle passing through the detecting unit decrease and that makes it possible to detect minute snapped needles.
APPLICATIONS
Detection of metallic needles or broken pieces, nails, cutlery in garments, sewing clothes, baby’s wear, sports wear, food, medical material, half-finished, finished goods.
